The Matcha ball mill is designed for post-drying grinding of agricultural products (e.g., ground tea, Chinese medicinal materials) with advantages of low-temperature grinding (15-25℃) to retain raw material color and aroma, fine fineness (500-1000 meshes), PLC-controlled easy operation, and durable structure.
| DESCRIPTION |
1.In the closed state, the porcelain balls operate under the drive of the roller. The stainless steel damping screws lift the porcelain balls to a higher position before they fall, enhancing the friction between the balls. This friction crushes the tea leaves and effectively improves the grinding efficiency.

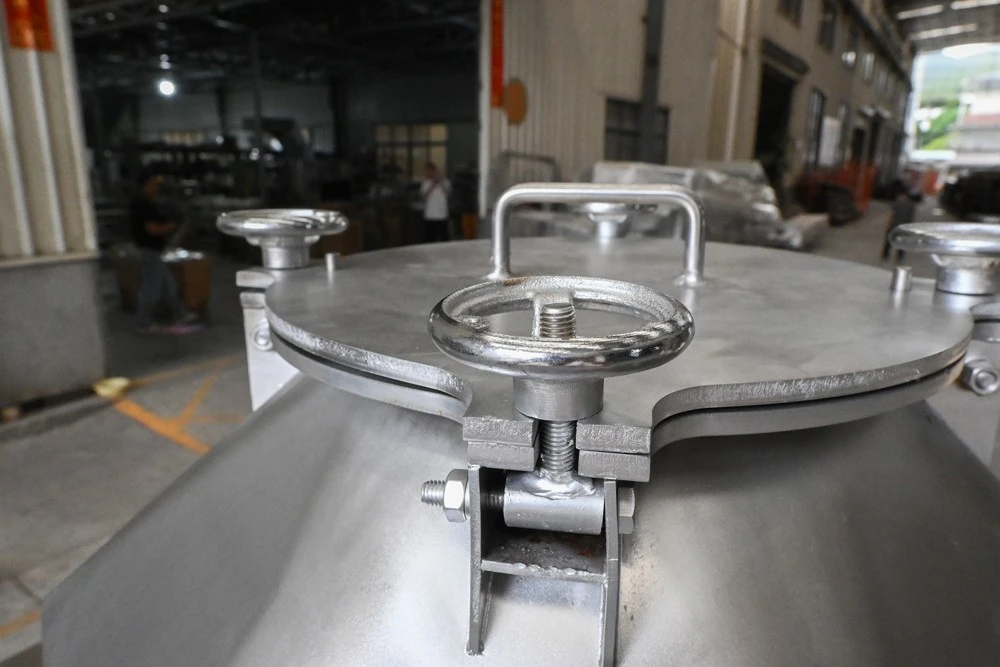

2.The core grinding components of the equipment use food-grade alumina balls, which have excellent wear resistance. The barrel lid groove adopts an O-ring design, and the discharge port is equipped with non-toxic silica gel to ensure no leakage of raw materials during the grinding process.

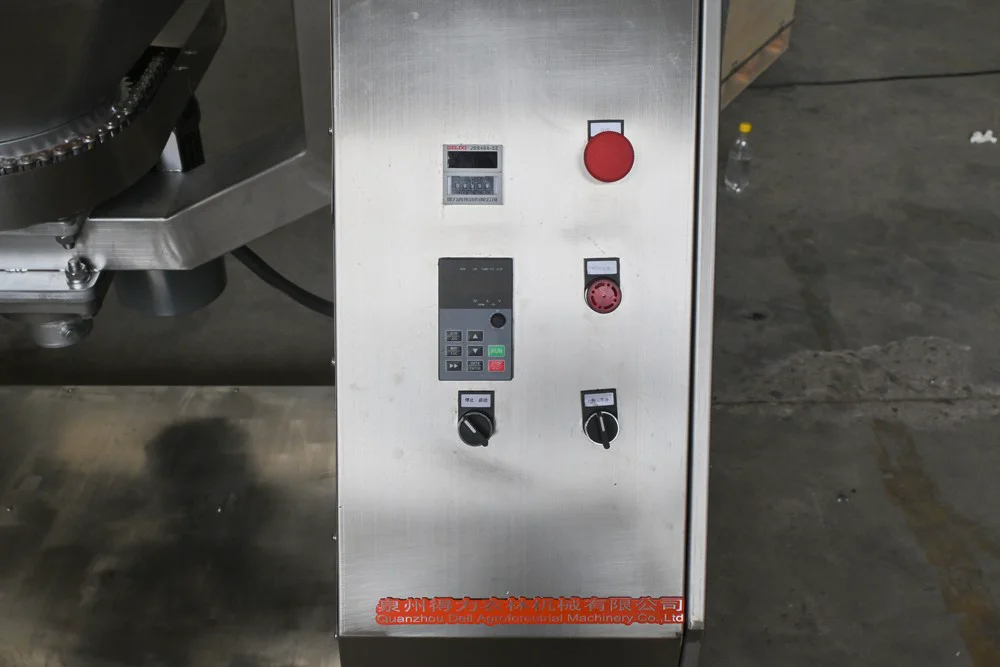

3.It is equipped with an automatic operation panel that displays the grinding time digitally, making the operation convenient and intuitive.
| ADVANTAGE |
High Grinding Quality: 5-15℃ air cooling + 304 stainless steel drum preserves raw material color and aroma; fineness up to 500-1000 meshes, with uniform and stable finished products.
Easy Operation: Supports variable-frequency speed regulation (mainly 40-50Hz) and precise timing; adjustable drum angle, clear PLC panel, and forklift holes on the frame for easy movement.
Durable Structure: Key components made of 304 stainless steel, frame of carbon steel; transmission system maintainable regularly to extend service life.
Safe & Efficient: Equipped with safety shield, grounding protection, and emergency stop button; single-machine capacity 20-40kg/20h; compact structure saves space, suitable for large-scale production.
| APPLICATION |
| 1 | Cylinder Rotation Assembly | 2 | Drum Motor | 3 | Frame |
| 4 | Idler Wheel Bracket | 5 | Drum | 6 | Drum Transverse Swing Assembly |
| 7 | Transverse Swing Motor |
| 1 | Base Frame | 2 | Right Frame | 3 | Swing Arm Bracket |
| 4 | Heat Sink | 5 | Durm | 6 | Tea Discharge Drawer |
| 7 | Left Frame | 8 | Drum Rotation Mechanism | 9 | Drum Motor |
| SPECIFICATION |

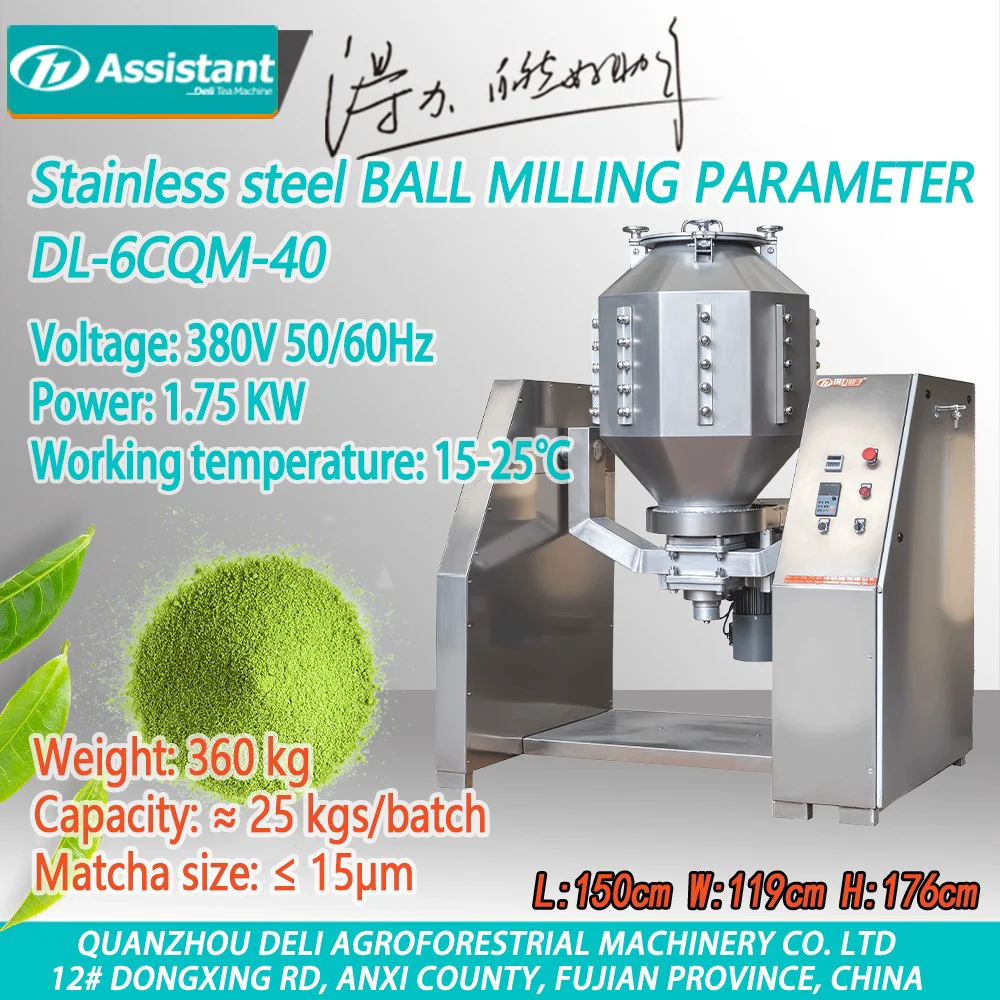

Matcha tea Commercial Ball Mill specification list:
| Model | DL-6CQM-40 |
| Dimension |
1500*1190*1760mm
|
|
Machine weight
|
360 kg
|
| Voltage |
380V 50/60Hz
|
| Power |
1.75 KW
|
|
Drum diameter
|
Φ65
|
|
Drum speed
|
0-38 rpm
|
|
Milling ball size
|
φ20
|
|
Milling ball quantity
|
90-100 kg
|
|
Working temperature
|
15-25 ℃
|
|
Milling time
|
10-20 hours
|
| Matcha Size |
≤ 15μm
|
| Capacity |
25 kgs/batch
|
If you have special need, it can be customized according to the needs of customers.

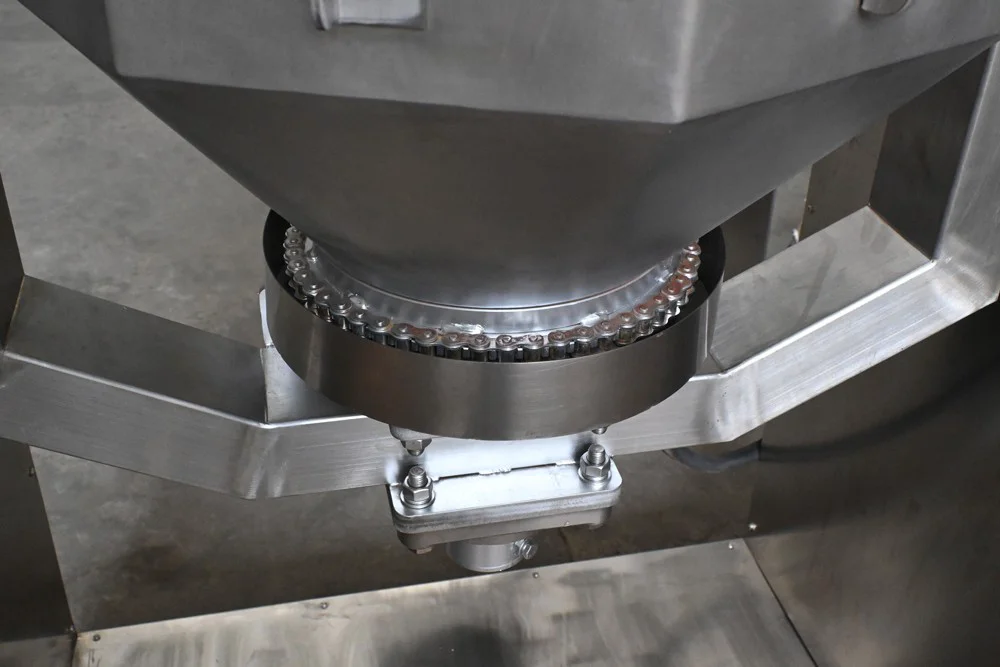

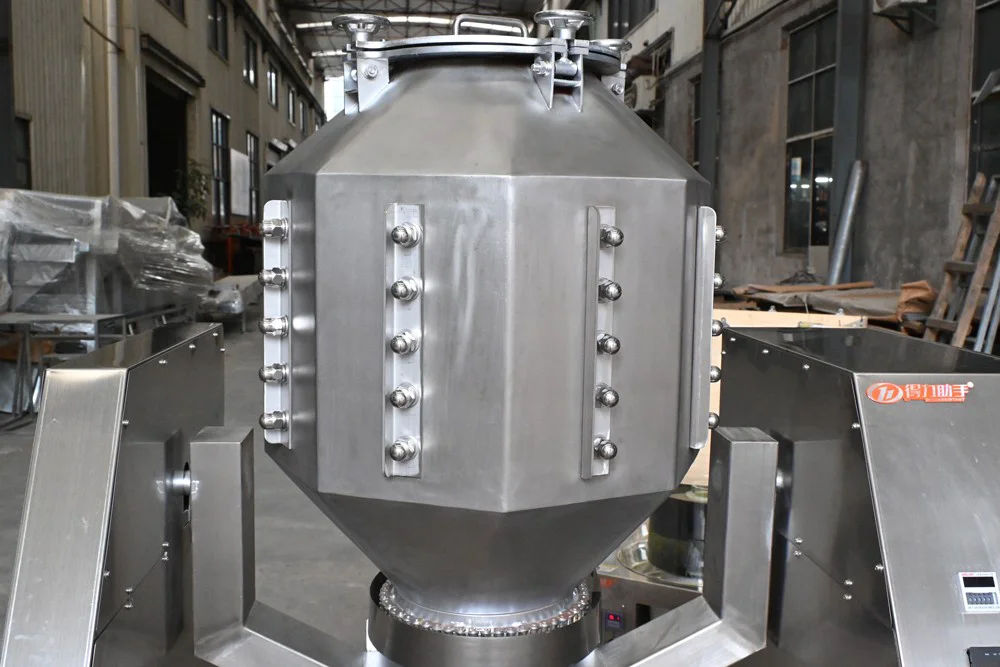

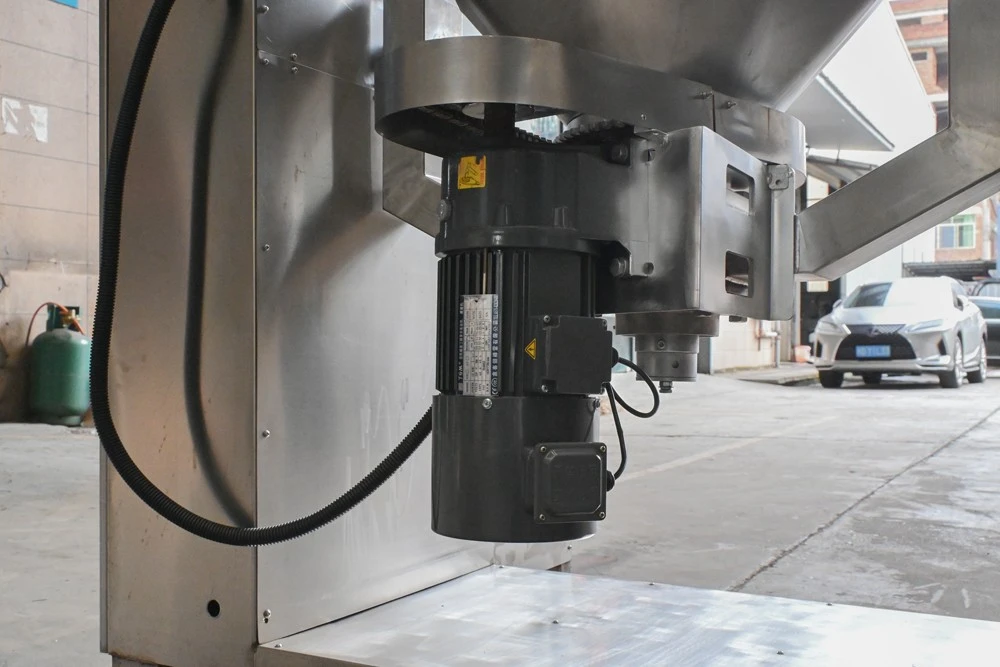

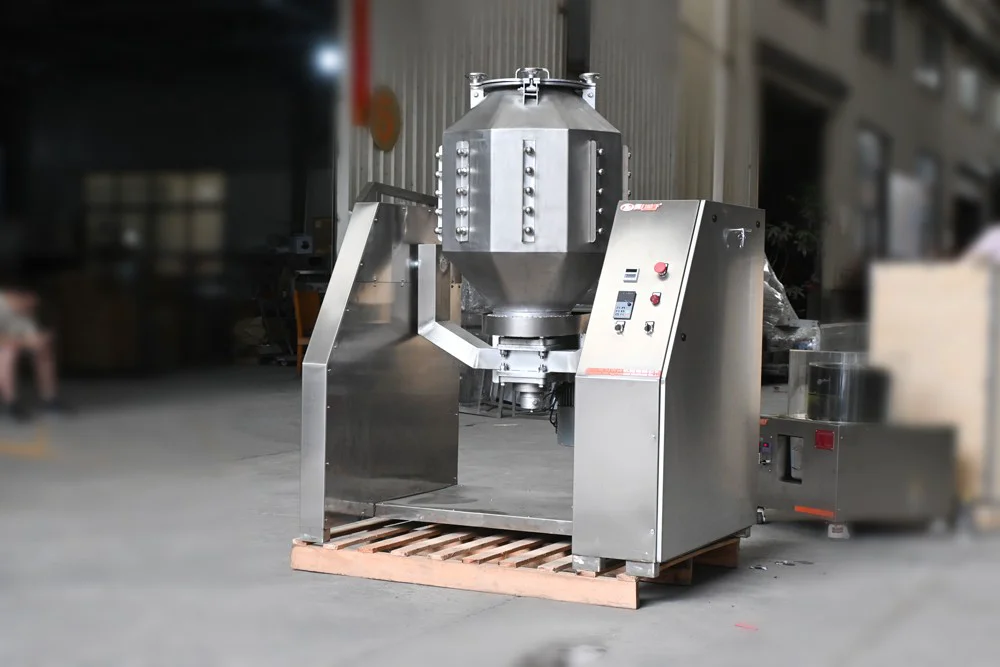

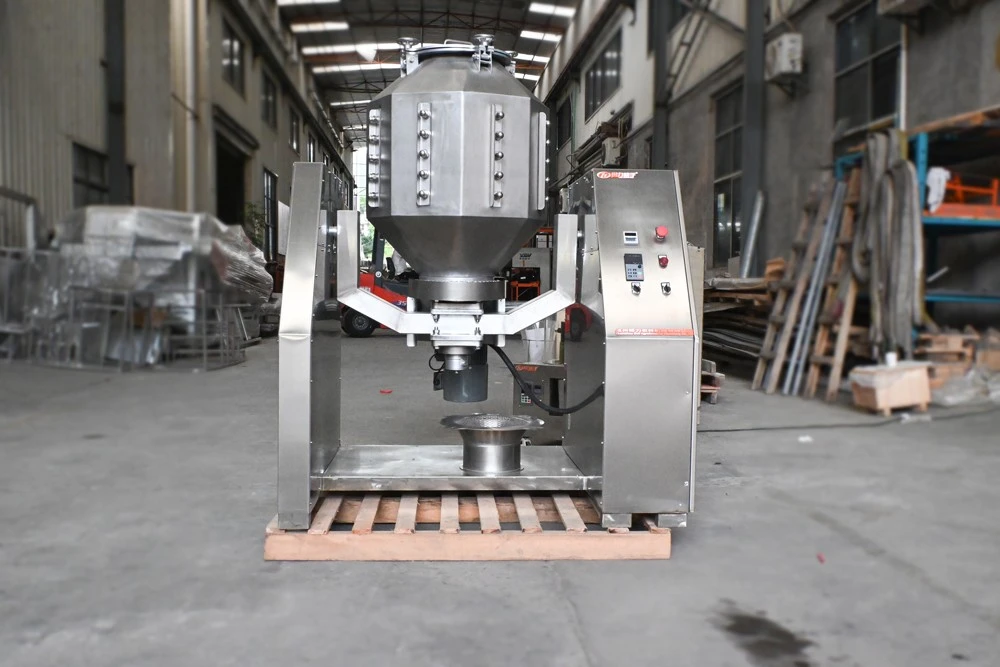

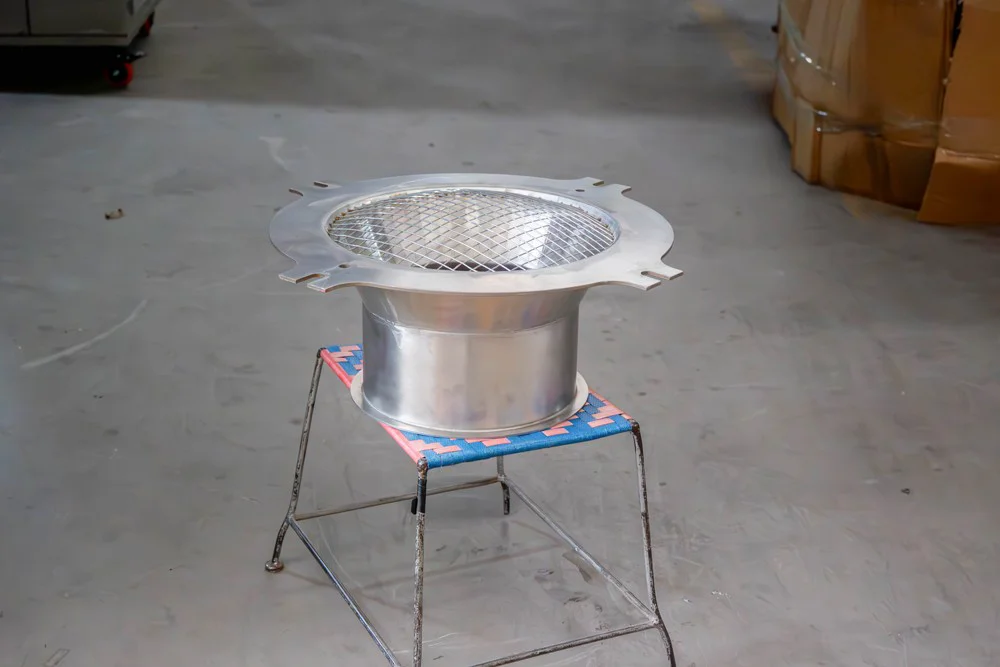

| PHOTOS |
